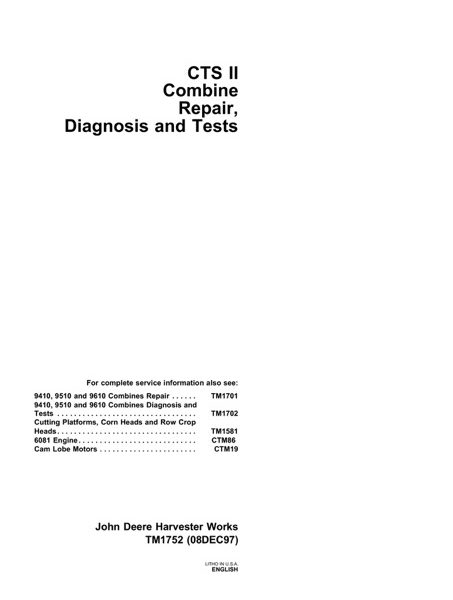

John Deere CTS II Combine Repair, Diagnosis and Tests Technical Manual

Description

John Deere CTS II Combine Repair, Diagnosis and Tests Technical Manual
Pages: 444
Format: PDF
Size: 8 MB
Language: English
Requirements: Adobe PDF Reader & WinZip
Compatibility: All Versions of Windows & Mac/IPAD

the John Deere CTS II Combine Repair, Diagnosis and Tests Technical Manual is an essential resource for anyone who works with these powerful harvesting machines. It provides a comprehensive guide to diagnosing and resolving technical issues, ensuring that operators and technicians can keep these combines running at peak performance.

CONTENTS:

Section 10 – General
Group 05 – Safety
Group 10 – Identification Number Location
Group 15 – Specifications
Section 120 – Separator Repair
Group 05 – Beaters
Group 10 – Shaker Pan, Chaffer, Sieve and Frames
Group 15 – Tine Separator Module
Group 20 – Tine Separators
Group 25 – Engine Gearcase to Module Drives
Group 30 – Tine Separator Gearboxes
Group 35 – Straw Chopper, Straw Spreader and Chaff Spreader
Section 130 – Grain Tank and Unloading System Repair
Group 05 – Grain Tank Extensions
Section 240 – Electrical Diagnostics and Tests
Group 5 – General Information
Group 5A – Electrical Schematic Symbols
Group 5B – How to Use This Diagnostic Information
Group 5C – Service Step Electrical Test Procedures
Group 5D – Seven Step Electrical Test Procedure
Group 5F – Wiring Diagram and Schematic Information
Group 5G – Warning Display Panel Diagnostics
Group 5H – Low Shaft Speed Monitor Diagnostics (w/o GreenStar)
Group 5I – Low Shaft Speed Monitor Diagnostics (with GreenStar)
Group 5J – Harves Trak Diagnostics
Group 5K – Lighting System Diagnostics
