JCB JS210, JS230 Excavator Service Manual

Description

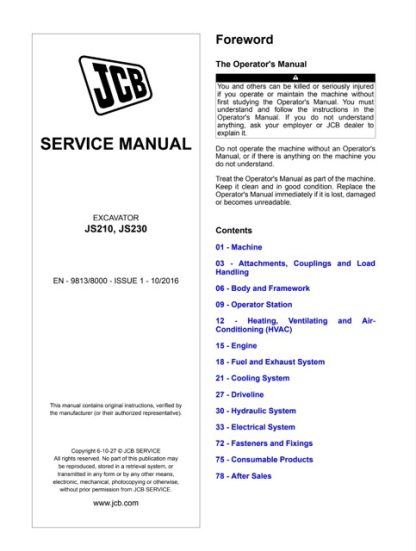

JCB JS210, JS230 Excavator Service Manual PDF
Pages: 1560
Format: PDF
Size: 236 MB
Language: English
Requirements: Adobe PDF Reader & WinZip
Compatibility: All Versions of Windows & Mac/IPAD

Make the machine safe before getting beneath it.Make sure that any attachments on the machine are correctly attached. Engage the park brake (if
installed), remove the ignition key, disconnect the battery. If the machine has wheels use blocks to prevent unintentional movement.

Contents:

01 – Machine
03 – Attachments, Couplings and Load Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
